MODEL

OUTPUT

SIZE (mm)

WEIGHT (kg)

VOLTAGE

CURRENT

BK 30 OP - 5

5 V

6 A

L : 125 mm
W : 50 mm
H : 24 mm

0.095 kg

BK 30 OP - 9

9 V

3.3 A

BK 30 OP - 12

12 V

2.5 A

BK 30 OP - 15

15 V

2 A

BK 30 OP - 24

24 V

1.3 A

INPUT VOLTAGE

95 - 265 Vac ( FREE VOLTAGE )

FREQUENCY (Hz)

47 / 440 Hz

EFFICIENCY (%)

84% minimum ( base on 12V )

INRUSH CURRENT (A)

20A typ (AC IN 110V, Full load),
40A typ (AC IN 220V, Full load) at cold start

EMC / EMI STANDARD

K00015, K61547

SAFETY STANDARD

K61347-1, K61347-2-13, K62384

MODEL

REGULATION
LINE (mV)

REGULATION
LOAD (mV)

RIPPLE (mV)

RIPPLE &
NOISE (mV)

BK 30 OP - 5

25 max

50 max

50 max

100 max

BK 30 OP - 9

45 max

90 max

90 max

140 max

BK 30 OP - 12

60 max

120 max

120 max

170 max

BK 30 OP - 15

75 max

150 max

150 max

200 max

BK 30 OP - 24

120 max

240 max

240 max

290 max

OVER CURRENT PROTECTION

Works at over 110% of rating and recovers automatically

OVER VOLTAGE PROTECTION

Works at 115~140% of rating

START ON TIME (S)

1 max (AC IN 110V / 220V, Full load)

HOLD UP TIME (mS)

10 typ (AC IN 110V / 220V, Full load)

ADJUSTABLE RANGE

OUTPUT DC ± 10 %

ENVIRONMENT

Operating temperature and humidity

-10 ~ +80 ℃, 20 ~ 90%,
RH (Non condensing)

Storage temperature and humidity

-20 ~ +85 ℃, 20 ~ 90%,
RH (Non condensing)

Vibration

10 ~ 55Hz at 1G 3minute periods,
30minute along X, Y and Z axis,
at no Operating

Impact (in package)

Less than 10G

ELECTRICALLY
ISOLATED

Input - Output

AC 1,500V 1minute, DC 500V 100MΩ
(At room temperature & Humidity)

Input - Case,FG

AC 1,500V 1minute, DC 500V 100MΩ
(At room temperature & Humidity)

Output - Case

AC 500V 1minute, DC 500V 100MΩ
(At room temperature & Humidity)

상호

파워뱅크(주)

모델

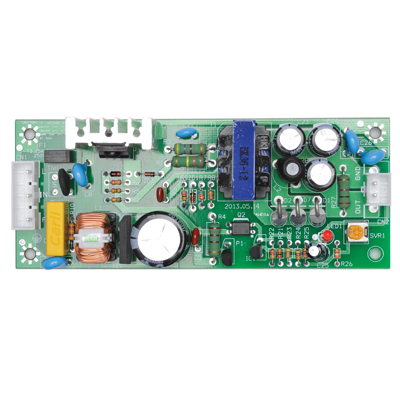

BK 30 OP

제조년월

2020.

제조자

파워뱅크(주)

제조국가

한국
