MODEL

OUTPUT

SIZE (mm)

WEIGHT (kg)

VOLTAGE

CURRENT

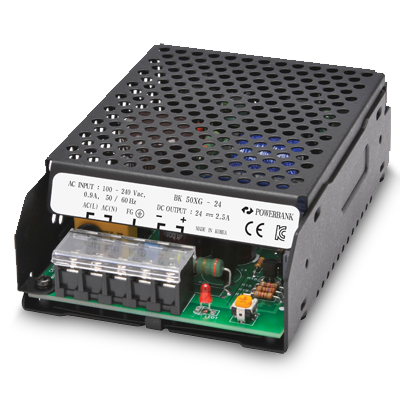

BK 50XG - 3.2

3.0 ~ 3.5 V

10 A

L : 125 mm
W : 83 mm
H : 41 mm

0.31 kg

BK 50XG - 5

5 V

10 A

BK 50XG - 9

9 V

5.5 A

BK 50XG - 12

12 V

4.2 A

BK 50XG - 15

15 V

3.3 A

BK 50XG - 24

24 V

2.5 A

BK 50XG - 28

28 V

1.7 A

BK 50XG - 30

30 V

1.6 A

BK 50XG - 36

36 V

1.3 A

BK 50XG - 48

48 V

1 A

INPUT VOLTAGE (Vac)

95 - 265 Vac ( FREE VOLTAGE )

FREQUENCY (Hz)

47 / 440 Hz

EFFICIENCY (%)

83% minimum ( base on 24V )

INRUSH CURRENT (A)

20A typ (AC IN 110V, Full load),
40A typ (AC IN 220V, Full load) at cold start

EMC / EMI STANDARD

KN 15, KN 61000-4-2, KN 61000-4-3, KN 61000-4-4, KN 61000-4-5, KN 61000-4-6,
KN 61000-4-11, EN 61204-3, EN 61000-3-2, EN 61000-3-3

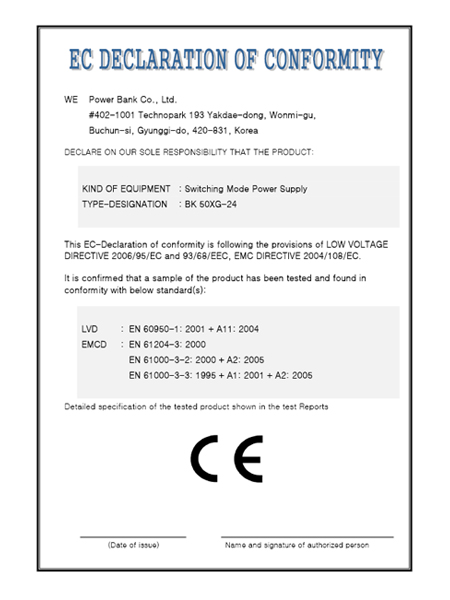

SAFETY STANDARD

K61347-1, K61347-2-13, K62384, EN 60950-1

MODEL

REGULATION
LINE (mV)

REGULATION
LOAD (mV)

RIPPLE (mV)

RIPPLE &
NOISE (mV)

BK 50XG - 3.2

25 max

50 max

50 max

100 max

BK 50XG - 5

25 max

50 max

50 max

100 max

BK 50XG - 9

45 max

90 max

90 max

140 max

BK 50XG - 12

60 max

120 max

120 max

170 max

BK 50XG - 15

75 max

150 max

150 max

200 max

BK 50XG - 24

120 max

240 max

240 max

290 max

BK 50XG - 28

140 max

280 max

280 max

330 max

BK 50XG - 30

150 max

300 max

300 max

350 max

BK 50XG - 36

180 max

360 max

360 max

410 max

BK 50XG - 48

240 max

480 max

480 max

530 max

OVER CURRENT PROTECTION

Works at over 110% of rating and recovers automatically

OVER VOLTAGE PROTECTION

Works at 115~140% of rating

START ON TIME (S)

1 max (AC IN 110V / 220V, Full load)

HOLD UP TIME (mS)

10 typ (AC IN 110V / 220V, Full load)

ADJUSTABLE RANGE

OUTPUT DC ± 10 %

ENVIRONMENT

Operating temperature and humidity

-10 ~ +80 ℃, 20 ~ 90%,
RH (Non condensing)

Storage temperature and humidity

-20 ~ +85 ℃, 20 ~ 90%,
RH (Non condensing)

Vibration

10 ~ 55Hz at 1G 3minute periods,
30minute along X, Y and Z axis,
at no Operating

Impact (in package)

Less than 10G

ELECTRICALLY
ISOLATED

Input - Output

AC 3,000V 1minute, DC 500V 100MΩ
(At room temperature & Humidity)

Input - Case,FG

AC 1,500V 1minute, DC 500V 100MΩ
(At room temperature & Humidity)

Output - Case

AC 500V 1minute, DC 500V 100MΩ
(At room temperature & Humidity)

상호

파워뱅크(주)

모델

BK 50XG

제조년월

2025.

제조자

파워뱅크(주)

제조국가

한국

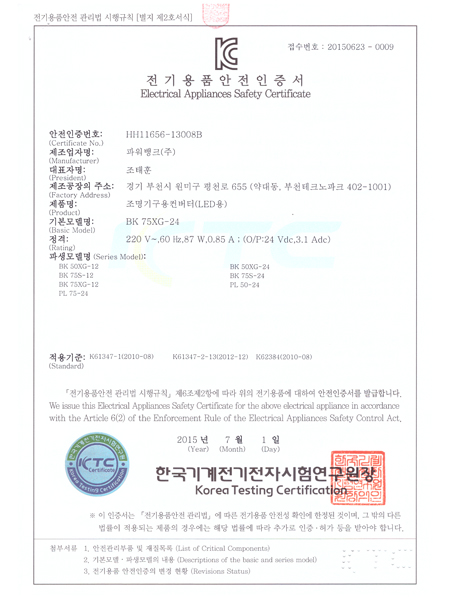

인증번호

HH11656-13008B

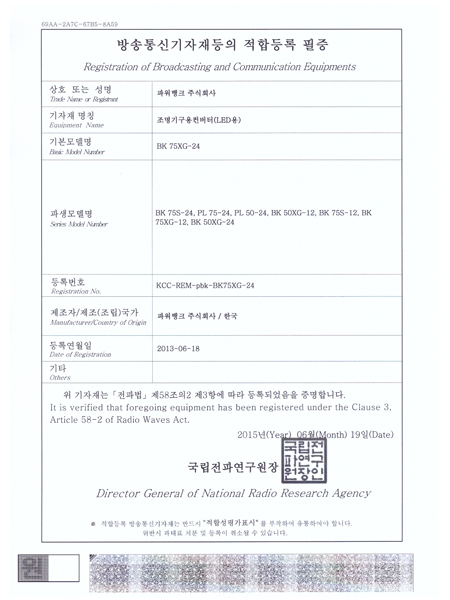

KCC-REM-pbk-BK75XG-24
