MODEL

OUTPUT

SIZE (mm)

WEIGHT (kg)

VOLTAGE

CURRENT

BK 150XG - 12

12 V

12.5 A

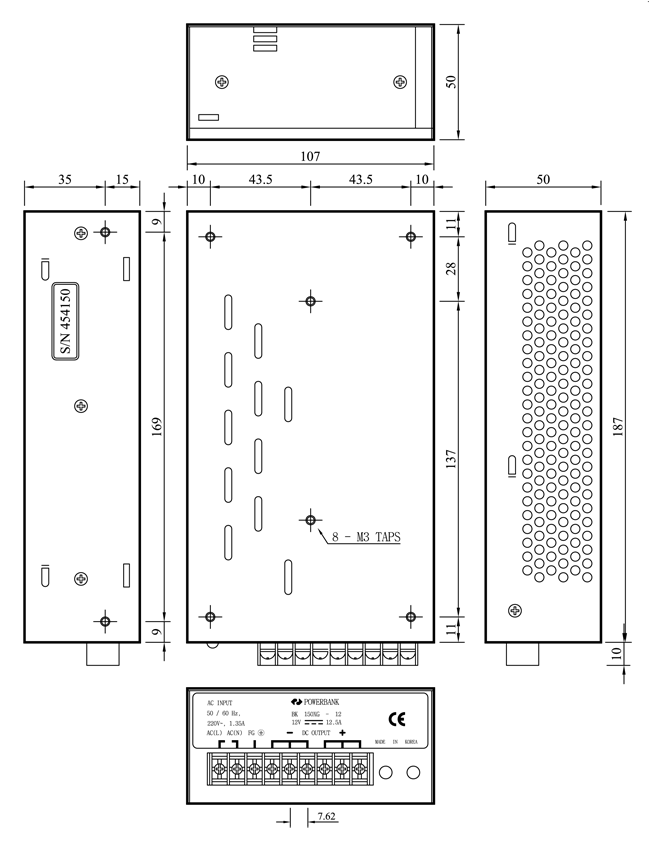

L : 187 mm
W : 107 mm
H : 50 mm

0.945 kg

BK 150XG - 13.8

13.8 V

10.8 A

BK 150XG - 15

15 V

10 A

BK 150XG - 24

24 V

6.2 A

BK 150XG - 28

28 V

5.3 A

BK 150XG - 36

36 V

4.1 A

BK 150XG - 48

48 V

3.1 A

INPUT VOLTAGE (Vac)

195 - 265 Vac

FREQUENCY (Hz)

50 / 60 Hz

EFFICIENCY (%)

86% minimum ( base on 24V )

INRUSH CURRENT (A)

40A typ (AC IN 220V, Full load) at cold start

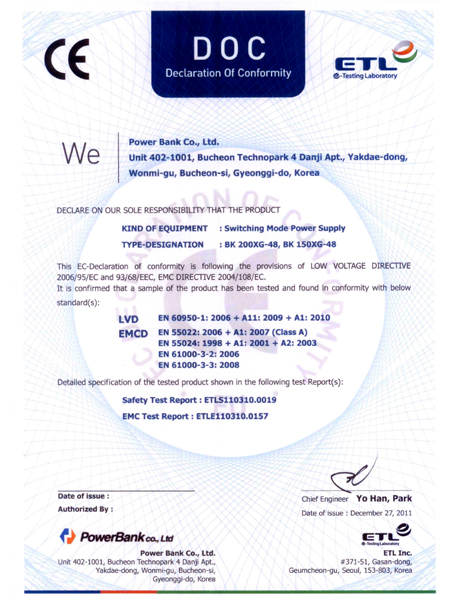

EMC / EMI STANDARD

EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3

SAFETY STANDARD

EN 60950-1

MODEL

REGULATION
LINE (mV)

REGULATION
LOAD (mV)

RIPPLE (mV)

RIPPLE &
NOISE (mV)

BK 150XG - 12

60 max

120 max

120 max

170 max

BK 150XG - 13.8

69 max

138 max

138 max

188 max

BK 150XG - 15

75 max

150 max

150 max

200 max

BK 150XG - 24

120 max

240 max

240 max

290 max

BK 150XG - 28

140 max

280 max

280 max

330 max

BK 150XG - 36

180 max

360 max

360 max

410 max

BK 150XG - 48

240 max

480 max

480 max

530 max

OVER CURRENT PROTECTION

Works at over 110% of rating and recovers automatically

OVER VOLTAGE PROTECTION

Works at 115~140% of rating

START ON TIME (S)

1 max (AC IN 220V, Full load)

HOLD UP TIME (mS)

10 typ (AC IN 220V, Full load)

ADJUSTABLE RANGE

OUTPUT DC ± 10 %

ENVIRONMENT

Operating temperature and humidity

-10 ~ +80 ℃, 20 ~ 90%,
RH (Non condensing)

Storage temperature and humidity

-20 ~ +85 ℃, 20 ~ 90%,
RH (Non condensing)

Vibration

10 ~ 55Hz at 1G 3minute periods,
30minute along X, Y and Z axis,
at no Operating

Impact (in package)

Less than 10G

ELECTRICALLY
ISOLATED

Input - Output

AC 3,000V 1minute, DC 500V 100MΩ
(At room temperature & Humidity)

Input - Case,FG

AC 1,500V 1minute, DC 500V 100MΩ
(At room temperature & Humidity)

Output - Case

AC 500V 1minute, DC 500V 100MΩ
(At room temperature & Humidity)

상호

파워뱅크(주)

모델

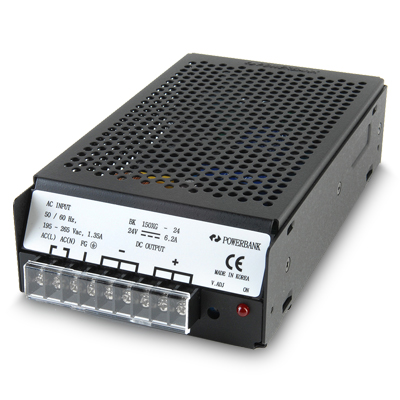

BK 150XG

제조년월

2025.

제조자

파워뱅크(주)

제조국가

한국
